NXS01405-A2H1SSV-ALA2000000 136U1464

Description

7DS-014052-000003818

NXS01405-A2H1SSV-ALA2000000

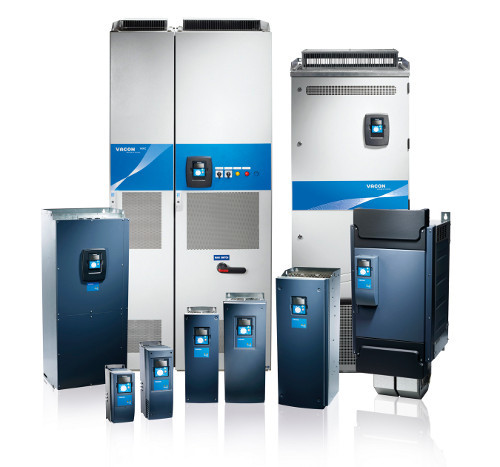

Vacon NXS Frequency Converter
380 –500 Vac (465-800 Vdc), 140 Amp,IP21/NEMA1
Alpha-numeric display
IEC61800-3
Integrated Brake chopper
A Slot: AL,Basic I/O-board module
B Slot: A2,2RO(NO/NC)
C Slot: No board
D Slot: No board
E Slot: No board
Manual: English
Frame 08
Other options according to Model code

Product details

Gross weight	59 kg
Net weight	58 kg
Volume	0 l
EAN	5710108994617

VACON NX_

Product View (Switch)	GLBL	Global (Standard)
Product Group	NXS	NXS Frequency Converter
Customized Drive	+BM25	Vacon Blue NXS/NXL Customizati
Mechanical Modification	S	Standard air cooled drive
Mains voltage	5-	380 –500 Vac (465-800 Vdc)
Current	0140	140 Amp
Control Keypad	A	Alpha-numeric display
Enclosure	2	IP21/NEMA1
EMC emission levels	H	IEC61800-3
Brake Chopper	1	Integrated Brake chopper
Electrical Modification	S	6-pulse with choke
Card Modifications	V-	DirectConn. w Varnished Boards
Shipping Package	+GSCB	Cardboard box as Shipping pack
Warranty	+WT01	Warranty 12/18 months
Gland Plate Option	+QGLC	Inch conduit plate
Option Slot A	AL	AL,Basic I/O-board module
Option Slot B	A2	A2,2RO(NO/NC)
Option Slot C	00	No board
Option Slot D	00	No board
Option Slot E	00	No board
Firmware language package	+FL22	UK,FR,IT,ES,PT,WestEur
Documentation Level	+DQCK	Quick guide user manual
Documentation Lang. Preference	+DLUK	English
System Firmware	+FNS02	System software NXS2
Software license	NONE	no software license
Application	+A000	No Special Application
Parameter Set	NONE	none
Motor Parameter Default	+LS50	Default Motor frequency 50HZ
Labeling options	+LPC1	no additional labels
Special BoM structure	+SPC0	Standard BoM Configuration
CE Approval	+GACE	CE Approval
UL Approval	+GAUL	UL approval
RCM Approval	+GACT	RCM Approval N16307
Marine approval	NONE	no marine approval
KC Approval	+GAKC	Korean Approval
Ukrainian Approval	+GAUA	Ukrainian Approval
EAC Approval	+GAEA	EAC Approval
Region	-R00	International (-R00)
Frame Size	FR08	Frame 08
Sub family identification	NONE	Normal customer ordered
Customer specific power variat	NONE	Normal power rating
Typecode Part 1	7DS-014052
Typecode Part 2	-000003818
Salestext	FR0801405-2H
Modelcode01	NXS01405-A2H1SSV-
Modelcode02	ALA2000000
Calculated Net Weight [kg]	58
Calculated Gross Weight [kg]	59
Motor Power Low Overload [kW]	75
Motor Power High Overload [kW]	55
Dimensions WxHxD [mm]	288X758X344
Continuous Current (NO) [A]	140
Continuous Current (HO) [A]	105
Prefix VXSNXLM	7
Platform VXSNXLM	D
Stockcode part 1	7DS-014052-117R46
Stock Code	7DS-014052
check if complete	OK
Calculated Net Weight	58
Material Gross Weight	59
Material Net Weight	58
Help Counter	1
Vendor	ERR01	Cannot Determine Vendor
Recommended Factory	ERR01	Cannot Determine Vendor
