NXS00455-G5H1SSS-A1A300C200+FL26+DPAP+DLCN 136H7364

Description

7DS-004555-000003804

NXS00455-G5H1SSS-A1A300C200+FL26+DPAP+DLCN

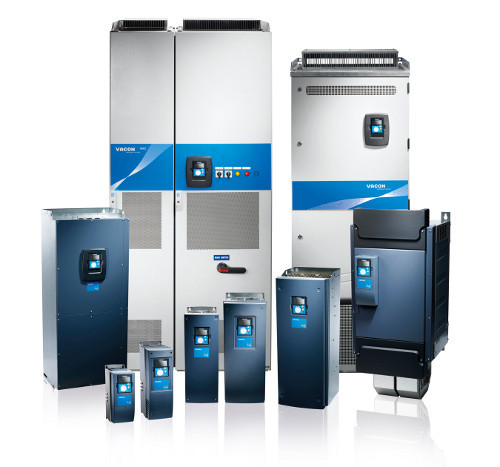

Vacon NXS Frequency Converter
380 –500 Vac (465-800 Vdc), 45 Amp,IP54/NEMA12
Graphical panel
IEC61800-3
Integrated Brake chopper
A Slot: A1,6DI,DO,2AI,1AO,+10Vr,+24V
B Slot: A3,1RO(NO/NC),1RO(NC), therm
C Slot: No board
D Slot: C2,RS485 (Modbus/N2)
E Slot: No board
Manual: Chinese
Frame 06
Other options according to Model code

Product details

Gross weight	19.5 kg
Net weight	18.5 kg
Volume	0 l
EAN	5710108739263

VACON NX_

Product View (Switch)	GLBL	Global (Standard)
Product Group	NXS	NXS Frequency Converter
Customized Drive	+BM25	Vacon Blue NXS/NXL Customizati
Mechanical Modification	S	Standard air cooled drive
Mains voltage	5-	380 –500 Vac (465-800 Vdc)
Current	0045	45 Amp
Control Keypad	G	Graphical panel
Enclosure	5	IP54/NEMA12
EMC emission levels	H	IEC61800-3
Brake Chopper	1	Integrated Brake chopper
Electrical Modification	S	6-pulse with choke
Card Modifications	S-	Direct connection / standard
Shipping Package	+GSCB	Cardboard box as Shipping pack
Warranty	+WT01	Warranty 12/18 months
Gland Plate Option	+QGLC	Inch conduit plate
Option Slot A	A1	A1,6DI,DO,2AI,1AO,+10Vr,+24V
Option Slot B	A3	A3,1RO(NO/NC),1RO(NC), therm
Option Slot C	00	No board
Option Slot D	C2	C2,RS485 (Modbus/N2)
Option Slot E	00	No board
Firmware language package	+FL26	UK,RU,CN,Others
Documentation Level	+DPAP	Paper manuals
Documentation Lang. Preference	+DLCN	Chinese
System Firmware	+FNS02	System software NXS2
Software license	NONE	no software license
Application	+A000	No Special Application
Parameter Set	NONE	none
Motor Parameter Default	+LS50	Default Motor frequency 50HZ
Labeling options	+LPC1	no additional labels
Special BoM structure	+SPC0	Standard BoM Configuration
CE Approval	+GACE	CE Approval
UL Approval	+GAUL	UL approval
RCM Approval	+GACT	RCM Approval N16307
Marine approval	NONE	no marine approval
KC Approval	+GAKC	Korean Approval
Ukrainian Approval	+GAUA	Ukrainian Approval
EAC Approval	+GAEA	EAC Approval
Region	-R00	International (-R00)
Frame Size	FR06	Frame 06
Sub family identification	NONE	Normal customer ordered
Customer specific power variat	NONE	Normal power rating
Typecode Part 1	7DS-004555
Typecode Part 2	-000003804
Salestext	FR0600455-5H
Modelcode01	NXS00455-G5H1SSS-
Modelcode02	A1A300C200
Modelcode03	+FL26
Modelcode05	+DPAP+DLCN
Calculated Net Weight [kg]	18.5
Calculated Gross Weight [kg]	19.5
Motor Power Low Overload [kW]	22
Motor Power High Overload [kW]	18.5
Dimensions WxHxD [mm]	195X519X237
Continuous Current (NO) [A]	46
Continuous Current (HO) [A]	38
Prefix VXSNXLM	7
Platform VXSNXLM	D
Stockcode part 1	7DS-004555-1178YU
Stock Code	7DS-004555
check if complete	OK
Calculated Net Weight	18.5
Material Gross Weight	19.5
Material Net Weight	18.5
Help Counter	1
Vendor	ERR01	Cannot Determine Vendor
Recommended Factory	ERR01	Cannot Determine Vendor
